Precision Quality Control

Inspection methodologies for magnetization vector alignment, field mapping, and repeatable Halbach assembly performance.

Best Fit For:Quality assurance directors and precision engineering leads.

Quality Focus

Project-specific angular tolerance planning
3D flux density mapping
Helmholtz coil validation

Typical Engagement Scope

Medical MRI
High-speed BLDC Motors
Particle Accelerators

Execution Focus

Magnetization angle measurement
Surface field uniformity checking
Dimensional inspection

Program Evaluation Matrix

Program Metric	Typical Range	Procurement Value
Angular Alignment	Confirmed by DFM review	The fundamental mathematical requirement for the Halbach effect to function without severe harmonic distortion.

RFQ Preparation Checklist

Required angular tolerance (e.g., ±2°)
Acceptable field deviation (ppm)
Inspection report requirements (CMM, Magnetic)

Risk and Mitigation

Harmonic distortion / Cogging torque: Incoming inspection plans for magnet segment magnetization angles are defined by tolerance target, order volume, and report requirements.

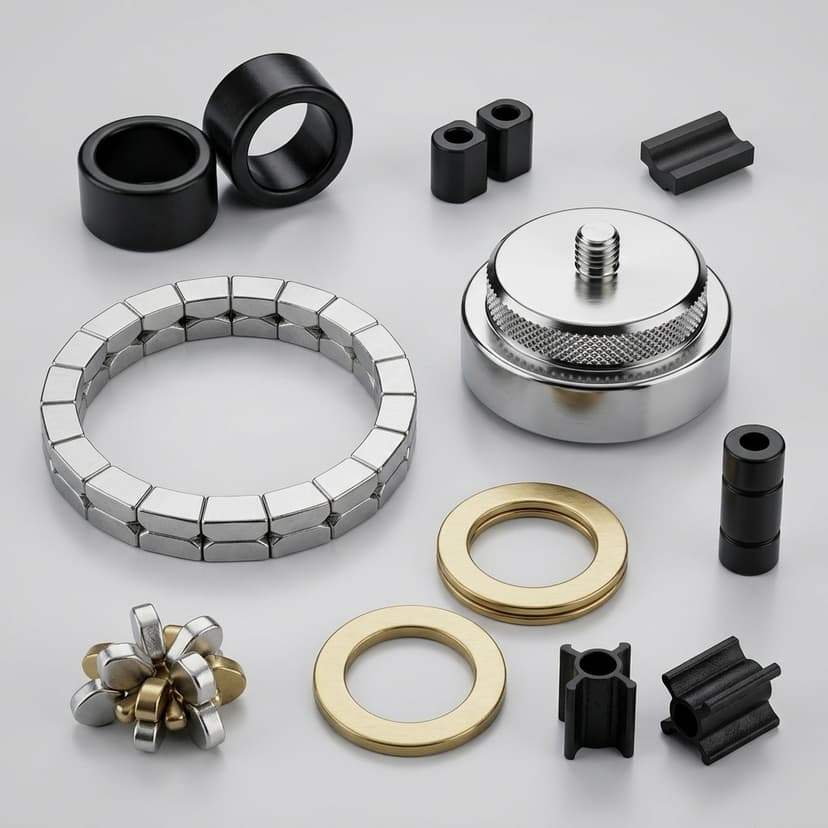

Related Products

Buyer FAQ

Can you support tight angular tolerance targets for mass production?

Tight angular targets depend on geometry, grade, tooling, and measurement method. We confirm achievable limits after DFM review, sample validation, and inspection-plan approval.
