← Back to Products

Miniature Halbach Arrays

Ultra-compact permanent magnet arrays designed for micro-robotics, optical focusing, and precision voice coil motors where weight and space are strictly constrained.

Target Buyer:Consumer electronics engineers, optics designers, and micro-robotics developers.
miniature-halbach image 1

Capability Highlights

  • Sub-millimeter segment machining
  • Ultra-thin non-magnetic retaining sleeves
  • High-grade N52 & N54 materials

Typical Applications

  • Voice Coil Motors
  • Optical Lenses / LiDAR
  • Micro-actuators

Engineering Focus

  • Precision wire EDM cutting for microscopic segments
  • Handling micro-brittleness during assembly
  • Adhesive thickness control in tight gaps

Key Evaluation Matrix

MetricTypical RangeWhy It Matters
Minimum Segment Size0.5mm – 1mmAllows true Halbach rotation in form factors previously restricted to simple dipoles.

RFQ Checklist

  1. Maximum envelope dimensions (mm)
  2. Required gap field strength
  3. Controlled assembly environment requirements

Risk Controls

  • Coating chipping during assembly: Parylene conformal coating and specialized vacuum tweezers for non-impact handling.

Product Gallery

miniature-halbach image 2
miniature-halbach image 2
miniature-halbach image 3
miniature-halbach image 3
miniature-halbach image 4
miniature-halbach image 4

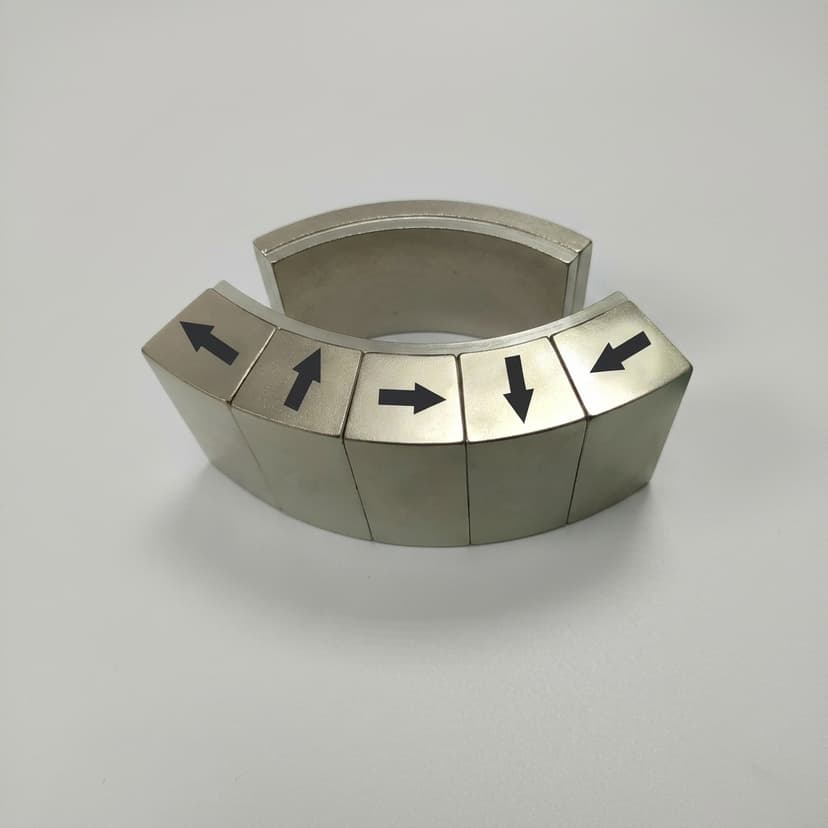

miniature-halbach image 5
miniature-halbach image 5

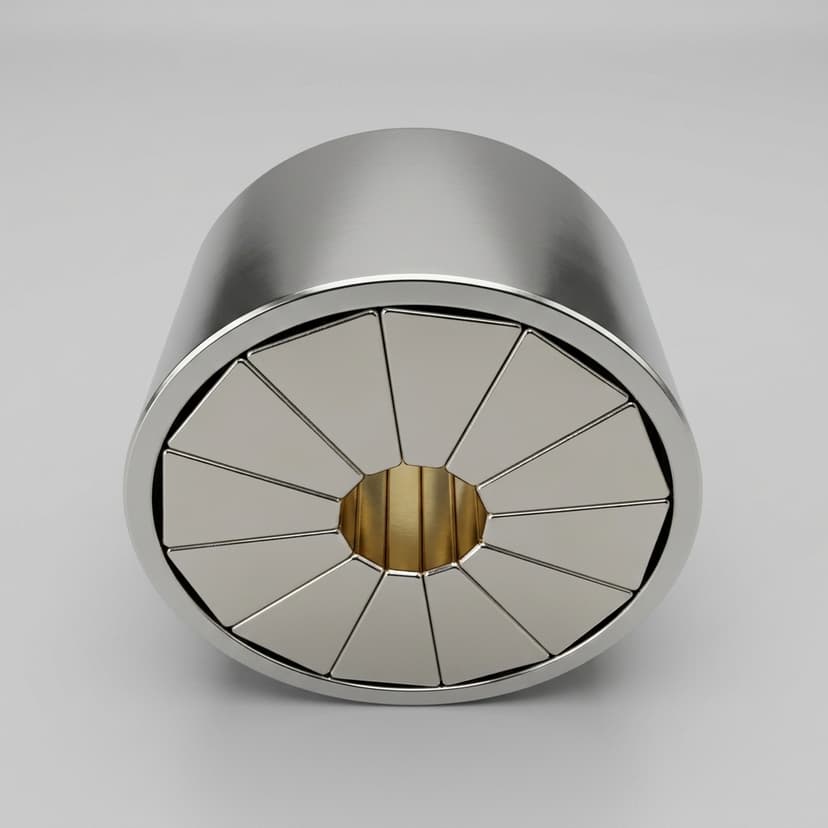

miniature-halbach image 6
miniature-halbach image 6

Buyer FAQ

What is the smallest array you can manufacture?

We can machine and assemble discrete magnet segments down to 0.5mm thicknesses using advanced EDM and microscopic optical alignment.
